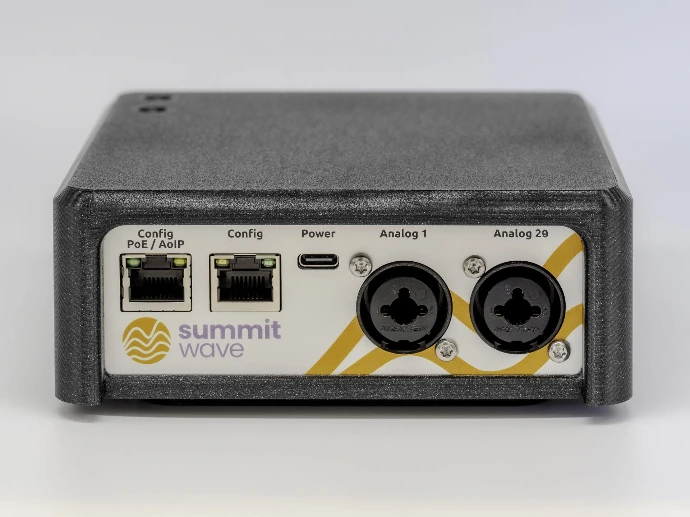

TX6DT
6-Stream Dante Tour Transmitter
- Auracast-Streams
- 6
- Dante / AoIP
- Ja
- Analoge Eingänge
- 2 × XLR
Für mehrsprachige Veranstaltungen, Konferenzen und mobile Produktionen.
Summitwave Transmitter TX
Intuitive System
The Summitwave TX is the central Auracast transmitter for professional installations. It is integrated into the existing audio infrastructure and transmits audio as broadcast streams to any number of listeners simultaneously. This makes the TX particularly suitable for venues where speech must remain intelligible and content should be offered in parallel - for example, for multilingualism, assistive listening, or different programmes.
In operation, the TX is designed like infrastructure: An initial setup that is deliberate and controlled, followed by stable and unobtrusive operation. Operators receive clear statuses and a comprehensible configuration, ensuring that daily operations are not dependent on technology. This creates a system that appears simple to the audience – and remains manageable for the team.
Key Features
The Summitwave TX seamlessly integrates into existing audio infrastructure and transmits audio as an Auracast broadcast to many listeners simultaneously. It supports multiple parallel streams for different languages or programmes and is designed for continuous operation in fixed installations. The configuration remains clear: distinct statuses, comprehensible settings, and operation that 'just works' after setup with a focus on stable performance in the venue's daily routine.
The right transmitter for every application
The Summitwave TX series offers the suitable Auracast solution for different areas of application. Whether fixed installation, mobile event, two streams or complex multi-channel application with Dante: All models feature two symmetrical analogue inputs and can be easily configured via the network.
Technical Highlights
Up to 6 parallel Auracast™ broadcast streams per TX
Flexible audio input: 2× XLR/TRS (Mic/Line) and optional audio-over-IP (Dante/AES67)
Professional audio quality & low latency (LC3 / LE Audio)
Easy setup & monitoring via web GUI (HTTP/HTTPS)
Flexible power supply: PoE (802.3af) or USB-C (Backup/Service)
AoIP: AES67 and Dante support
